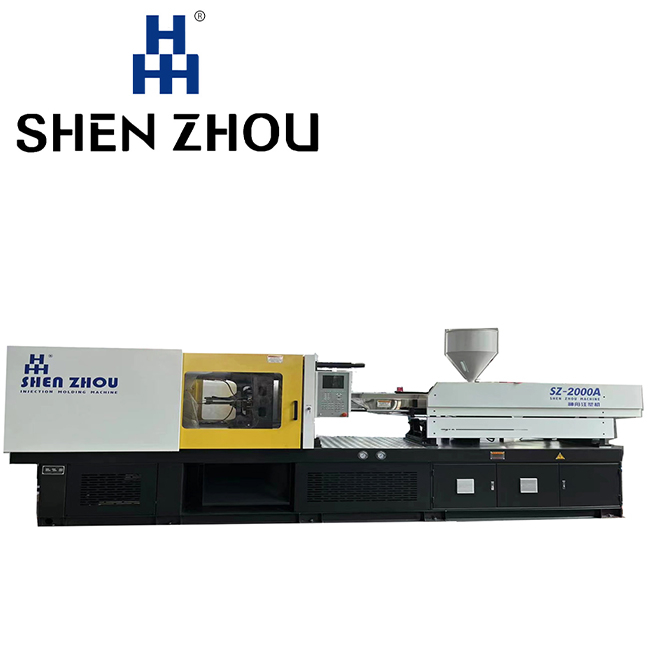

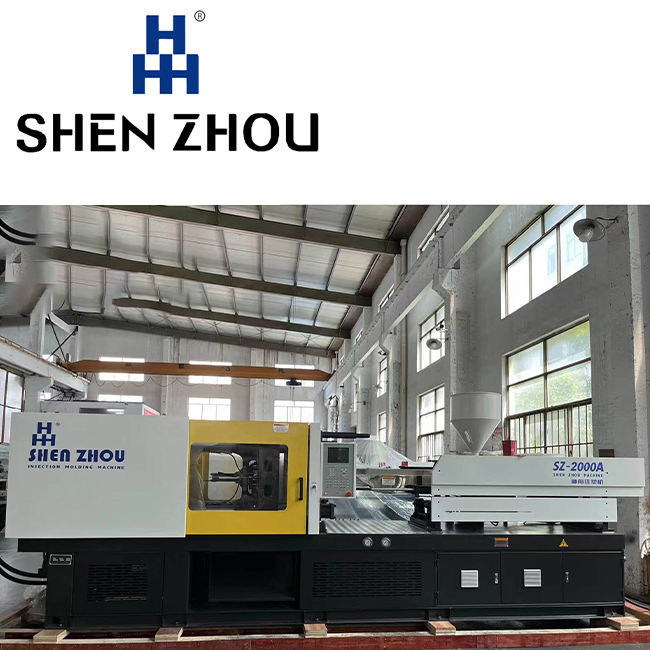

项目 ITEM | 单位UNIT | SZ—2000A | |||
注射装置 INJECTION UNIT | |||||
螺杆直径 | SCREW DIAMETER | mm | 50 | 55 | 60 |
螺杆长径比 | SCREW LID RATIO | L/D | 23.1 | 21 | 19.3 |
理论注射容积 | THEORETICAL SHOT VOLUME | CM3 | 491 | 594 | 707 |
注射质量(PS料) | SHOT WEIGHT(PS) | g | 447 | 540 | 643 |
注射压力 | INJECTION PRESSURE | Mpa | 215 | 178 | 149 |
理论注射速率(PS料) | THEORETICAL INJECTION RATE(PS) | g/s | 145 | 175 | 208 |
塑化能力(PS料) | PLASTICISING CAPACITY | g/s | 22.5 | 28.7 | 35.4 |
螺杆驱动扭矩 | SCREW TORQUE | N.m | 1510 | ||
螺杆最高转速 | MAX.SCREW ROTATE SPEED | r/min | 170 | ||
洼射行程 | INJECTION STROKE | mm | 250 | ||
合模装置 CLAMPING UNIT | |||||
合模力 | MAX.CLAMPING FORCE K | KN | 2000 | ||
移模行程 | MAX.OPENING STROKE | mm | 500 | ||
拉杆有效间距(VxH) | SPACE BETWEEN TIE BARS | mm | 505×505 | ||
允许模厚(MIN-MAX) | MOULD HEIGHT | mm | 190-530 | ||
模板最大开距 | MAX.DAYLIGHT | mm | 1030 | ||
液压顶出力 | EJECTOR FORCE | KN | 53.1 | ||
液压顶出行程 | EJECTOR STROKE | mm | 125 | ||
液压顶出杆总数 | EJECTOR QUANTITY | 5 | |||
其它 OTHER | |||||
油泵电动机功率 | PUMP MOTOR POWER | KW | 18.5 | ||
油泵最高压力 | PUMP PRESSURE | Mpa | 16 | ||
料简加热功率 | HEATING POWER | KW | 16.6 | ||
加热区段 | HEATING ZONE | 4 | |||
机器外形(LxWxH) | SIZE | m | 5.9×1.5×2 | ||
机器净重 | NET WEIGHT | t | 6.8 | ||
油箱容积 | OIL TANK CAPACITY | L | 420 | ||
国际公认型号 | INTERNATIONAL DESIGNATION | 2000—1060 | |||
